raft-consensus-algorithm

A TypeScript implementation of the Raft consensus algorithm, structured as a monorepo.

Raft is a protocol for building fault-tolerant distributed systems. A cluster of nodes elects a leader, replicates a log of commands across all nodes, and applies those commands to a state machine — even when some nodes crash or become unreachable. This implementation covers leader election, log replication, snapshots, pre-vote, and joint-consensus cluster membership changes.

Packages

Package	Description
@maboke123/raft-core	The core library — transport and storage agnostic
@maboke123/raft-grpc	gRPC transport adapter for real network deployments

Apps

App	Description
example-cluster	A runnable 3-node cluster with a WebSocket server for the devtools UI

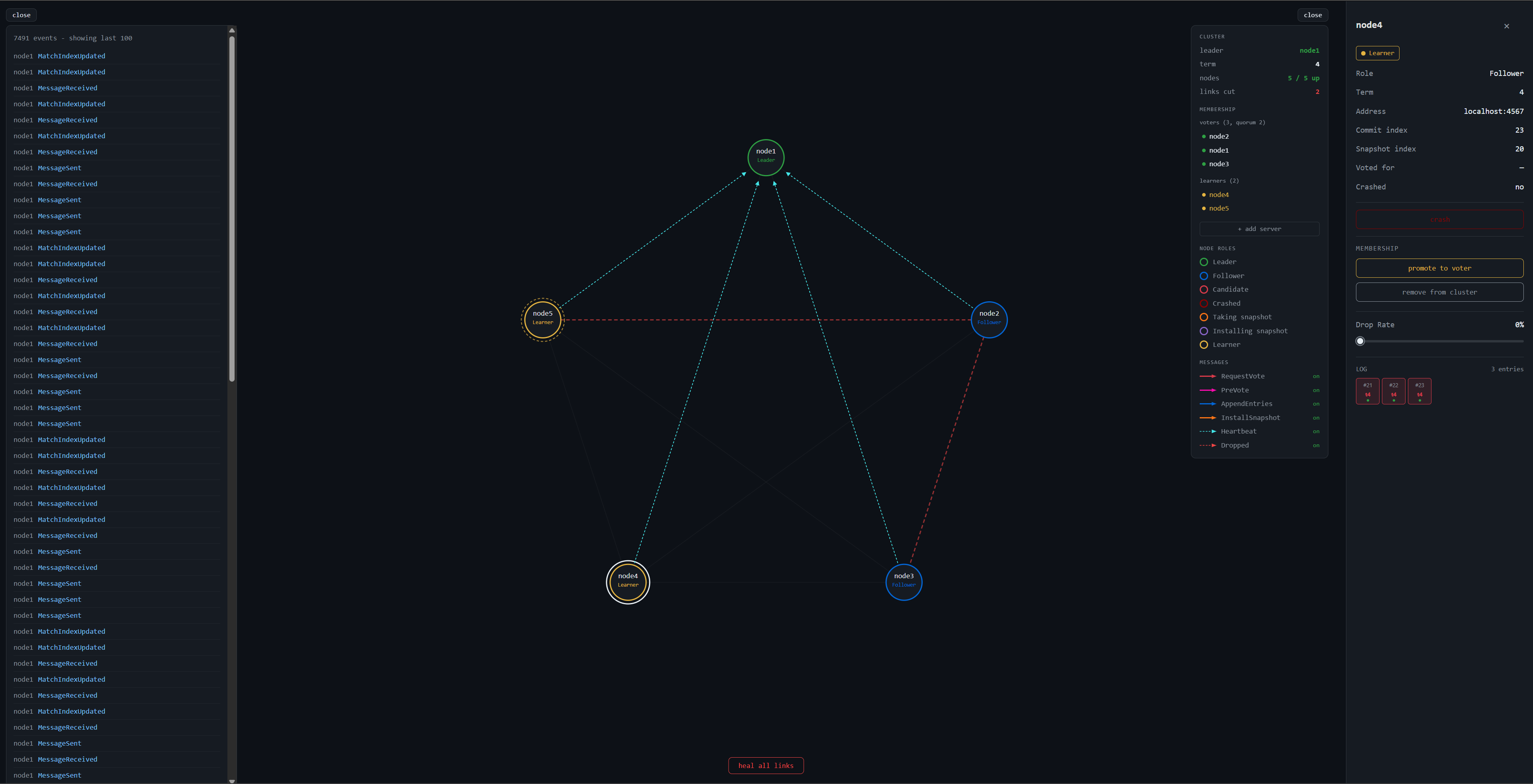

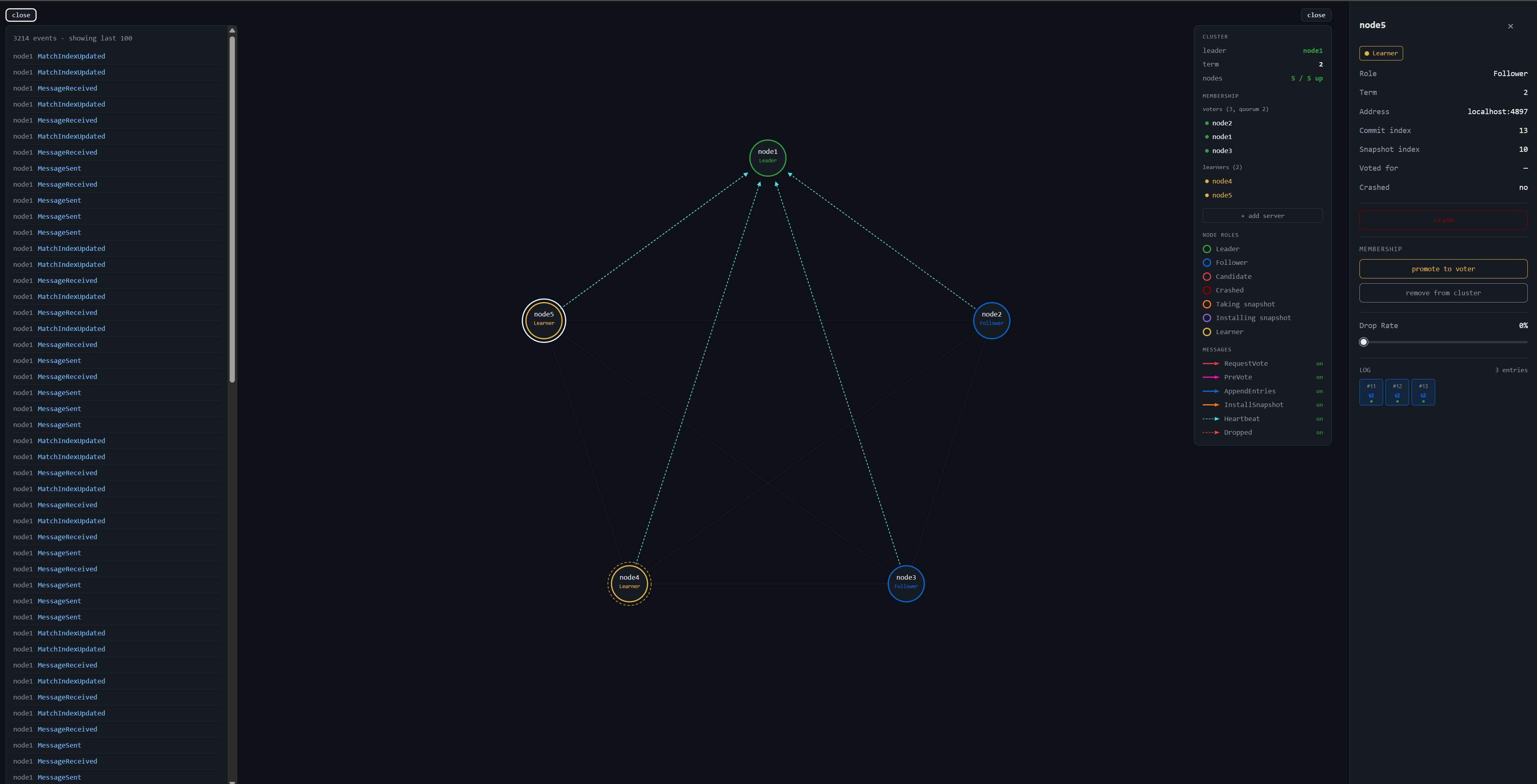

devtools	A React visualizer that shows live cluster state, elections, and message flow

Repository structure

packages/
  raft-core/        the npm library — zero production dependencies
  raft-grpc/        gRPC transport adapter
apps/
  example-cluster/  runnable demo server (depends on raft-core + raft-grpc)
  devtools/         React devtools UI (connects to example-cluster via WebSocket)
scripts/
  GenerateCerts.sh  generates self-signed TLS certificates for local testing
Copy

Getting started

Prerequisites

• Node.js 18+
• npm 8+ (workspaces support)

Install dependencies

npm install
Copy

This installs dependencies for all packages and apps in one step.

Build all packages

npm run build
Copy

Or build a single package:

cd packages/raft-core
npm run build
Copy

Run tests

npm run test
Copy

Or test a single package:

cd packages/raft-core
npm test
Copy

Run the example cluster

The example cluster starts three Raft nodes and a WebSocket server that streams events to the devtools UI.

cd apps/example-cluster
npm run dev
Copy

Then in a separate terminal, start the devtools UI:

cd apps/devtools
npm run dev
Copy

Open http://localhost:5173 to see the cluster visualizer.

Generate TLS certificates (optional)

For running the gRPC transport with mutual TLS locally:

bash scripts/GenerateCerts.sh
Copy

This generates a CA and node certificates under certs/. Do not commit the generated .key files.

Using the library

Install from npm — you do not need to clone this repository to use the library:

npm install @maboke123/raft-core

# Optional: gRPC transport for real network deployments
npm install @maboke123/raft-grpc
Copy

See the raft-core README for the full usage guide.

Implementation notes

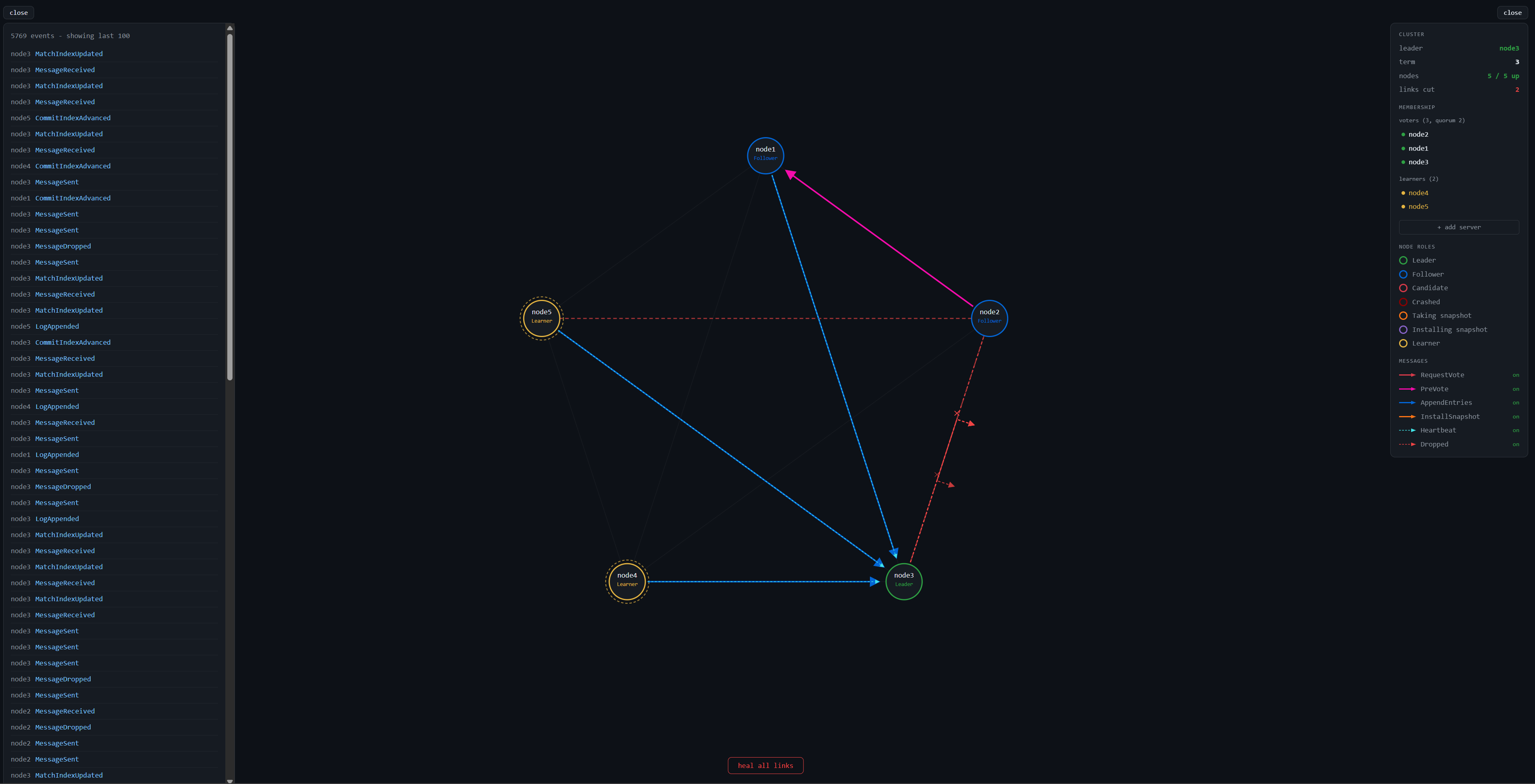

• Pre-vote — nodes run a pre-vote phase before starting a real election, preventing disruptions from nodes rejoining after a partition
• Joint consensus — cluster membership changes use the joint consensus approach from the Raft paper, allowing safe addition and removal of nodes without downtime

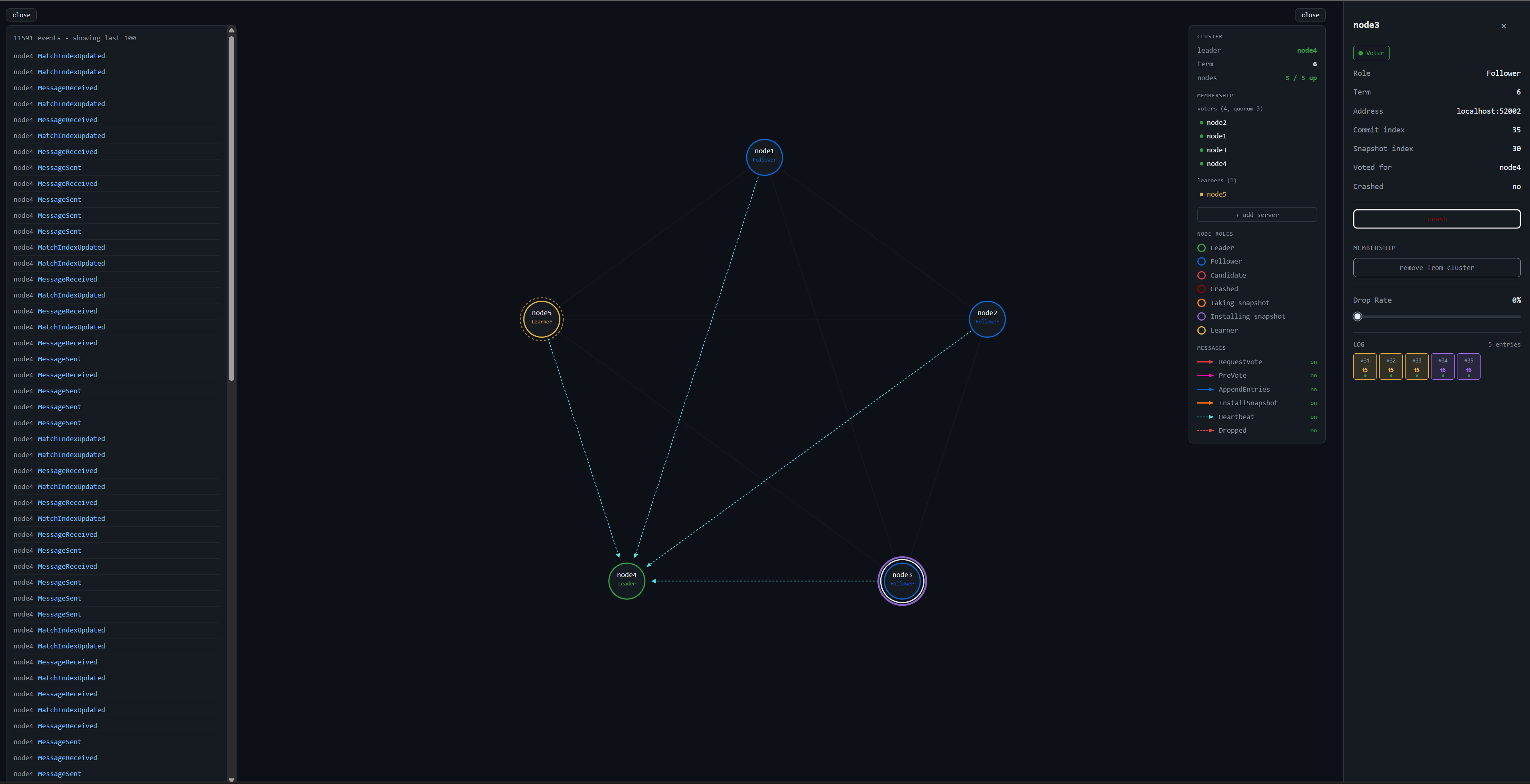

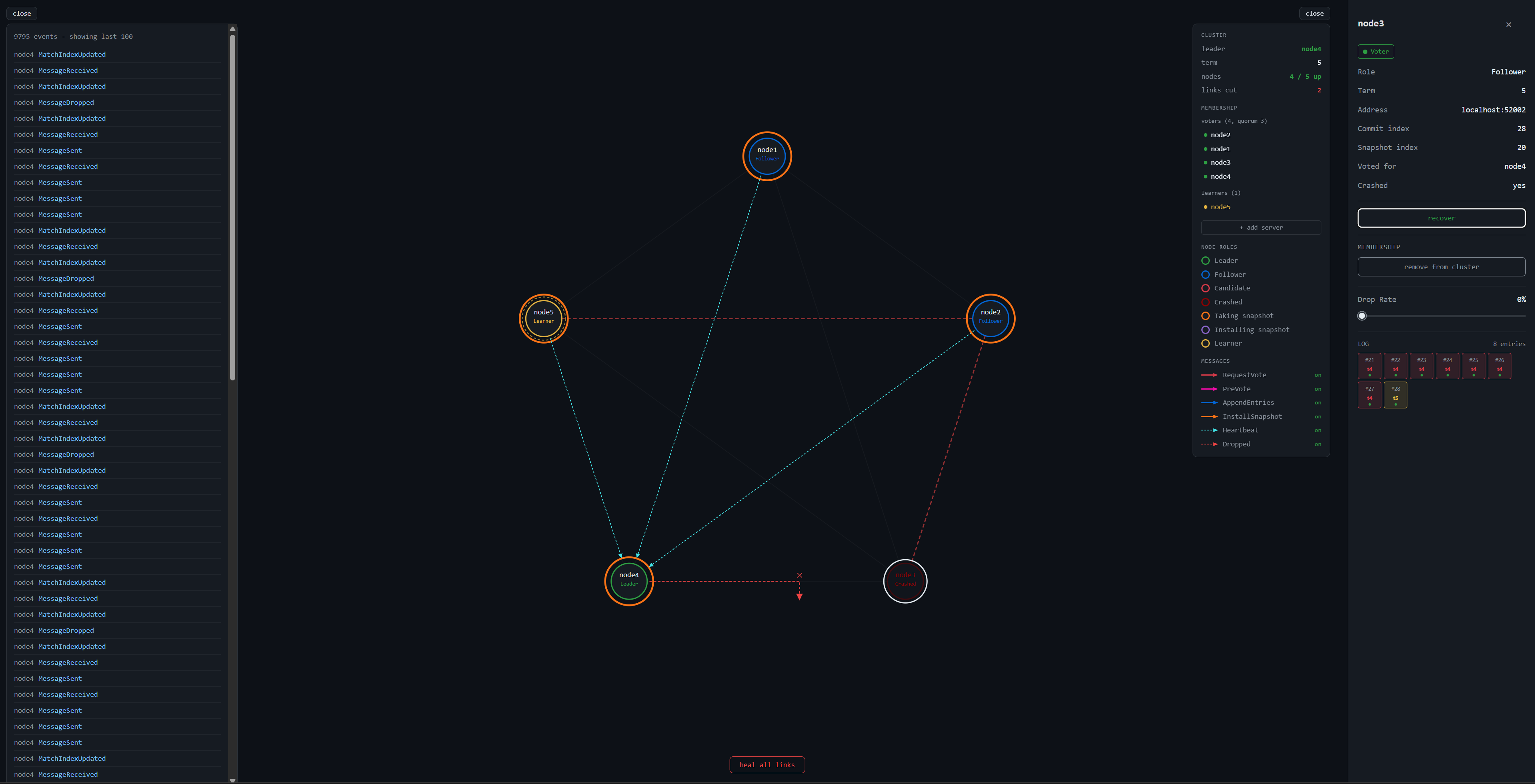

• Snapshots — the leader periodically takes snapshots of the application state machine and sends them to lagging followers via InstallSnapshot RPC
• Pluggable storage — storage is split into four focused interfaces (MetaStorage, LogStorage, SnapshotStorage, ConfigStorage) so you can implement exactly the backend you need
• Pluggable transport — the Transport interface is minimal so you can bring any communication layer

License

MIT
